Mechanical Extensometer Manufacturer,Supplier and Exporter in India
Product Code : TVT-STE-10622

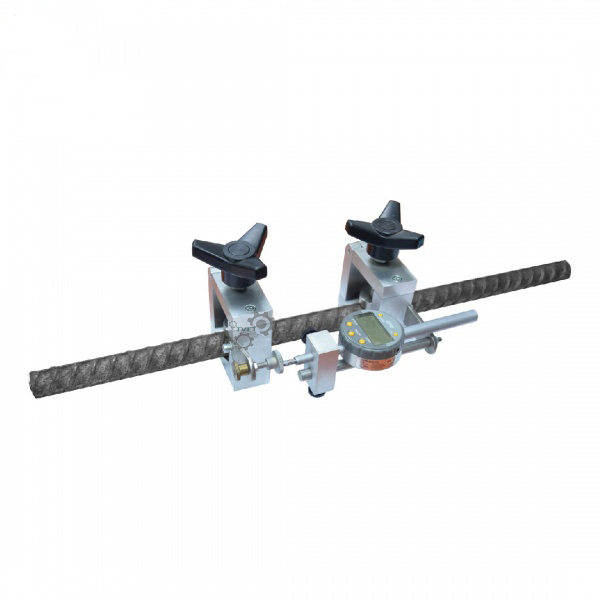

The Mechanical Extensometer is an attachment to a universal testing machine that measures the elongation of a test piece over a set gauge length under load.
How It Works
The extensometer's jaws are clamped to the specimen at the start of the test at a fixed gauge length; as the specimen is loaded on the universal testing machine, the device mechanically tracks the increasing separation of its jaws and displays the elongation, which is used to determine the proof stress at a required elongation percentage and other tensile properties.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measuring Range | 0 to 50 mm |
| Resolution | 0.01 mm |
| Gauge Length (Adjustable) | 10 to 30 mm |
| Thickness or Diameter of Specimen | 1 to 50 mm |
| Dimension | 285(L) x 130(W) x 140(H) mm |
| Approx. Weight | 1.6 kg |
Applications
Mechanical extensometers are used alongside universal testing machines for tensile testing of reinforcement bars and structural steel per ASTM E8/E8M and IS 1608, providing the elongation measurement needed to determine proof stress at a specified elongation percentage and other tensile properties, complementing the electronic Non Metallic Material Extensometer used for high-stretch materials.
Related Products & Category

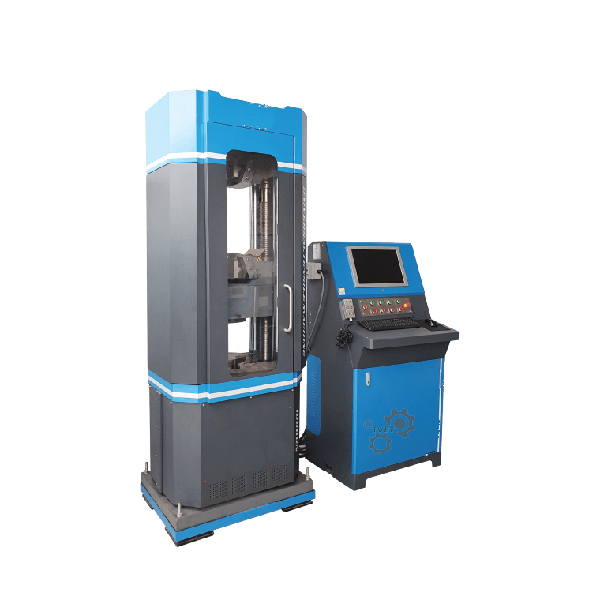

Listed under Steel Testing Equipments. Related products: Non Metallic Material Extensometer and Electro-Hydraulic Servo Control Universal Testing Machine 1000kN.
Frequently Asked Questions
What does this extensometer measure?
It measures the elongation of a test piece over a fixed gauge length as it is loaded on a universal testing machine, used to determine proof stress at a required elongation percentage.
What is its measuring resolution?
Per its specification table, its resolution is 0.01 mm over a measuring range of 0 to 50 mm.
Is this suitable for non-metallic materials?
This mechanical extensometer is intended for standard tensile testing of metals such as reinforcement bars and structural steel; for large-elongation, non-metallic materials such as rubber and plastic, the Non Metallic Material Extensometer is the appropriate accessory.
Request a Quote
To get a quotation for the Mechanical Extensometer, tell us the test standard you work to, the quantity and the delivery location. Request a quote from Tvet Equipments.
