Fully Automatic Universal Tensile Machine 2kN Manufacturer,Supplier and Exporter in India
Product Code : TVT-STE-10613
The Fully Automatic Universal Tensile Machine is a twin-column, ball-screw driven testing system for small to medium capacity tensile, compression and general mechanical property testing, built around a DC speed-regulating servomotor with PWM control.
How It Works
A professionally designed servo control system realises pulse-width-modulation (PWM) drive with closed-loop test-speed control, while an LCD module displays real-time test data and status under single-chip automatic control. The machine can calculate fracture extension and strength values automatically, recording maximum test force, fracture value, yield value and maximum compression value, with a computer connector available for data export — making it suited to manufacturing, construction, product quality supervision and inspection bureaus, building material testing departments, and university teaching laboratories.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max. Test Force (model variants listed) | 50 kN / 20 kN / 10 kN |
| Structure Type | Twin rigid column with twin high-precision ball screw |
| Max. Store (Vertical Space) | 1100 mm |
| Max. Width (Space) | 400 mm |
| Test Force Accuracy | ±0.5% |
| Load Resolution | 1/300,000 |
| Measuring Range | 0.5–100% F.S. |
| Displacement Measurement Accuracy | ±1% |
| Stress / Strain Control Rate | 0.05–5% FS/s |
| Displacement Control Rate | 0.05–500 mm/min |
| Load Reading Units | gf, kgf, N, kN, lbf, etc. |
| Power Source | AC 220 V, single phase, 50/60 Hz, 750 W |
| Dimension | 490 x 795 x 1750 mm (L x W x H) |
| Approx. Weight | 250 kg |
Applications
This machine range supports tensile and compression testing of metallic and non-metallic materials per ASTM E8/E8M, ASTM A370, ISO 6892-1 and IS 1608, suited to laboratories needing a compact, fully automatic ball-screw testing system at a lower capacity than the larger electro-hydraulic machines in the Tvet Equipments range.
Related Products & Category

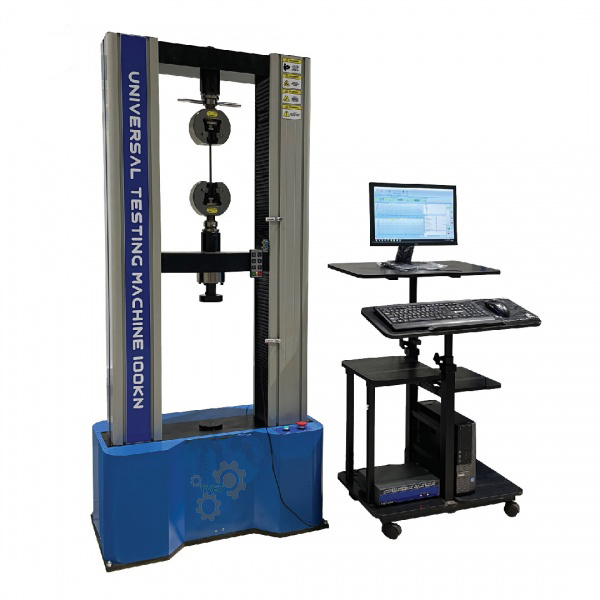

Listed under Steel Testing Equipments. Related products: Fully Automatic Universal Testing Machine 100kN and Electrical Universal Testing Machine 5000N.
Frequently Asked Questions
What does this machine measure automatically?
It automatically records maximum test force, fracture value, yield value and maximum compression value, and can calculate fracture extension and strength values.
Is this machine suitable for teaching laboratories?
Yes, it is described as suitable for manufacturing, quality inspection and university teaching laboratory use.
Request a Quote
For a price on the Fully Automatic Universal Tensile Machine 2kN, send us the quantity, the standard or test method it is for, your mains supply and where it should be delivered. Send an enquiry to Tvet Equipments.
