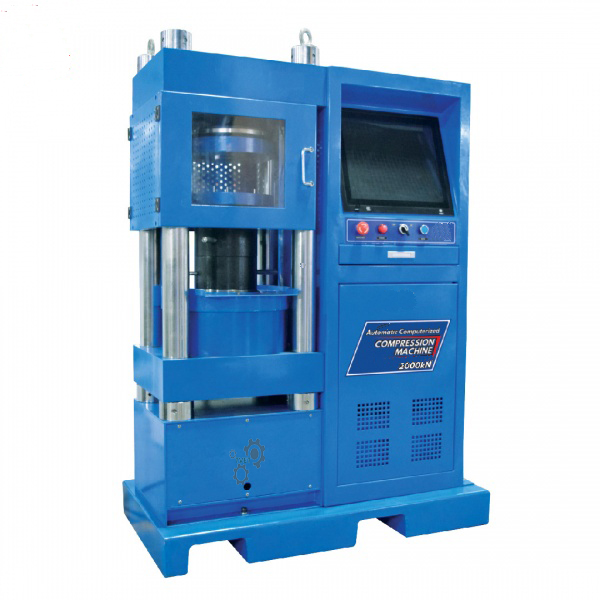

Touch Screen Machine 2000kN Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10446
Compression And Flexural
Old AC motor had replaced by new imported DC motor for more durability, low noise pollution, low oil temperature & low power consumption.
Extra improvement on safety feature with fully protection cover & piston travel protection switch cover.
Newly upgraded model, rigid, compact & with brand new outlook.
FEATURES:-
*Original genius parts cost low maintenance
*Free from foundation mounting
*High energy saving up to 70% compare with conventional type
*Extremely low sound & vibration during operation
*User friendly computerised system
*Fully covered safety enclosed
SOFTWARE SUPER TEST 7.2
*User friendly one click RUN to operate & clear menu display indication.
*Options to select number of decimal points to display for Load, Strength & Speed.
*User input of Test Number, Strength, Age, Sample Size (cube, block & cylinder) & Loading Speed
*Test report can be printed immediately after test with a printer connected.
*Real time display of Load against Time curve & options to display curve in test report.
*Number of samples per report can be added up to 10 samples.
*Unlimited savings of test result in huge computer storage memory.
*Test report header can be input manually for various information such as customer information, weight, mixing ratio, project, etc.
*Simple automatic or manual loading for calibration with auto correction function for load error.
*Software consists of dual programes for compression & flexural tests.
Technical
Specifications :
|
Max.Vertical
Clearance
|
415
mm
|
|
Max.Horizontal
Clearance
|
270
mm
|
|
Capacity
|
2000
kN
|
|
Compression
Platen Diameter
|
295
mm
|
|
Piston
Ram Diameter
|
250
mm
|
|
Piston
Ram Travel
|
50
mm
|
|
Column
Diameter
|
Ø70
mm
|
|
Accuracy
|
Class
1
|
|
Relative
Error
|
±1%
|
|
Repeatability
Relative Error
|
1%
|
|
Resolution
|
0.1
- 0.001 kN
|
|
Sensor
Accuracy
|
0.1%
|
|
Max.
Hydraulic Working Pressure
|
50
Mpa
|
|
Product
Dimension (mm)
|
965
(L) x 500 (W) x 1400 (H)
|
|
Packing
Dimension (mm)
|
1065
(L) x 600 (W) x 1500 (H)
|
|
Approx.
Product Weight
|
900
kg
|
|
Approx.
Packing Weight
|
1000
kg
|
|
Power
|
0.75
KW, 220 V, 50/60 Hz,1ph, 6Amp
|
