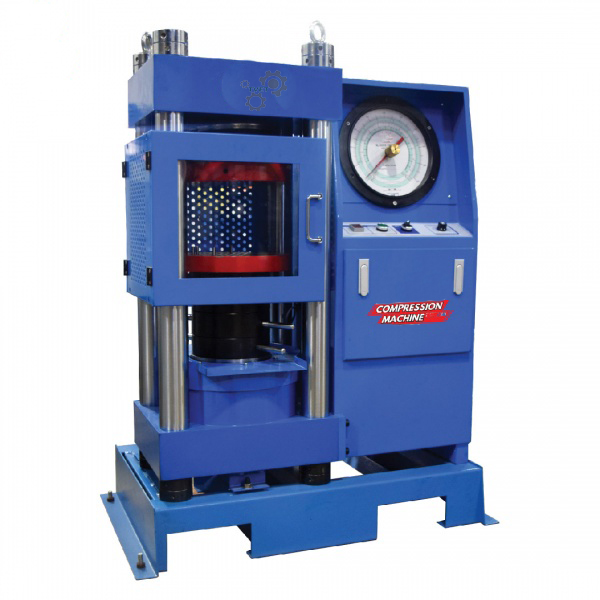

Analogue Compression Machine 2000kN Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10438
Compression Test
Newly upgraded model with brand new outlook. Old AC motor replaced by new imported DC motor for more durability, low noise pollution, low oil temperature & low power consumption.
FEATURES:-
*Less vibration & noise
*Simple operation system
*Energy saving
*Piston travel switch
ADDITIONAL FEATURE :-
*Load gauge with direct Mpa value
*Upgraded fully covered safety enclosed
*Extended base frame for comfortable operation level
Technical
Specifications :
Max.
Vertical Clearance
415
mm
Max.
Horizontal Clearance
270
mm
Capacity
2000
kN x 5 kN / Div.
Compression
Platen Diameter
295
mm
Piston
Ram Diameter
250
mm
Piston
Ram Travel
50
mm
Column
Diameter
66.5
mm
Accuracy
Class
2
Product
Dimension (mm)
965
(L) x 610 (W) x 1300 (H)
Packing
Dimension (mm)
1020
(L) x 650 (W) x 1400 (H)
Approx.
Product Weight
782.5
kg
Approx.
Packing Weight
805
kg
Power
220
V, 2.5 Amp, 50 / 60 Hz, 1 ph
