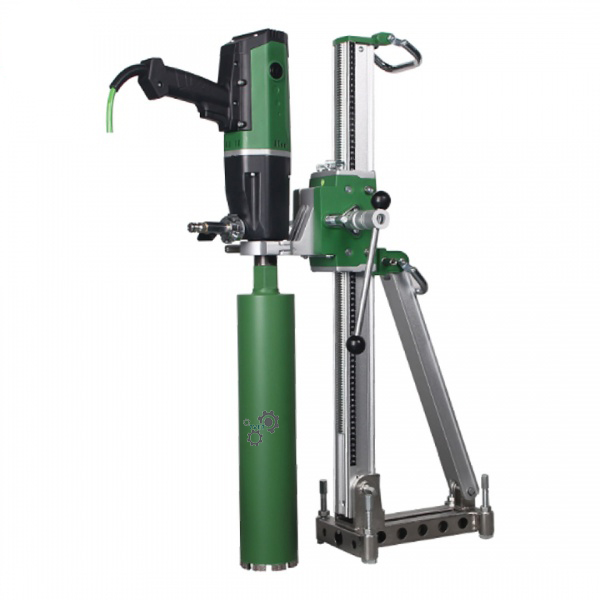

Coring Machine 2 in 1 Version (Heavy Duty) Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : TVT-CTE-10457
The Coring Machine 2 in 1 Version (Heavy Duty) is a heavy-duty 2200W core drilling machine that can be used either handheld/portable or mounted on a stand, cutting core diameters up to 162mm portable or 202mm with the optional stand, in both dry and wet drilling modes across 3 gear speeds.
How It Works
A smart LED indicator warns the operator of motor overload, overheating, or when the carbon brushes need replacement, helping prevent motor damage during extended coring sessions. The 3-speed gearbox (650/1300/2600 RPM) lets the operator match spindle speed to core diameter and drilling mode — larger-diameter cores are cut at lower speed, smaller diameters at higher speed — while the "2 in 1" design allows the same motor unit to be used handheld for portable coring or mounted on the DSP-162 stand for larger-diameter, more stable drilling.
Technical Specifications
| Parameter | Specification |
|---|---|
| Power | 2200 W |
| Voltage | 230 V |
| Current | 10 A |
| Net Weight | 7.5 kg |
| Frequency | 50/60 Hz |
| Max. Portable Drilling Diameter | 162 mm |
| Max. Drilling Diameter (with Stand) | 202 mm |
| Speed | 650 / 1300 / 2600 RPM |
| Spindle Thread | 1-1/4" UNC & 1/2" G |
| Gear 1/2/3 Drilling Diameter (Portable) | 162 / 82 / 42 mm |
| Gear 1/2/3 Drilling Diameter (with Stand) | 202 / 102 / 62 mm |
| Stand for Choice | DSP-162 |
| Packing Size | 650 x 430 x 200 mm |
Applications
Used to extract core samples from hardened concrete or rock, in both portable handheld and stand-mounted configurations, for compressive strength assessment per ASTM C42, IS 516 (Part 4), and BS EN 12504-1, with the 3-speed gearbox covering a wide range of core diameters from the same unit.
Related Products & Category
Listed under Concrete Testing Equipments. Related products: Coring Machine 18kg and Hand Held Coring Machine.
Frequently Asked Questions
What does "2 in 1" mean for this coring machine?
The same motor unit can be used handheld for portable coring (up to 162mm diameter) or mounted on the optional DSP-162 stand for larger-diameter, more stable drilling (up to 202mm diameter).
What does the LED indicator warn about?
Motor overload, overheating, and when the carbon brushes need replacement.
Can this machine be used for wet drilling?
Yes — it is designed for both dry and wet drilling across its 3 gear speeds.
Request a Quote
For a price on the Coring Machine 2 in 1 Version (Heavy Duty), send us the quantity, the standard or test method it is for, your mains supply and where it should be delivered. Send an enquiry to Tvet Equipments.
