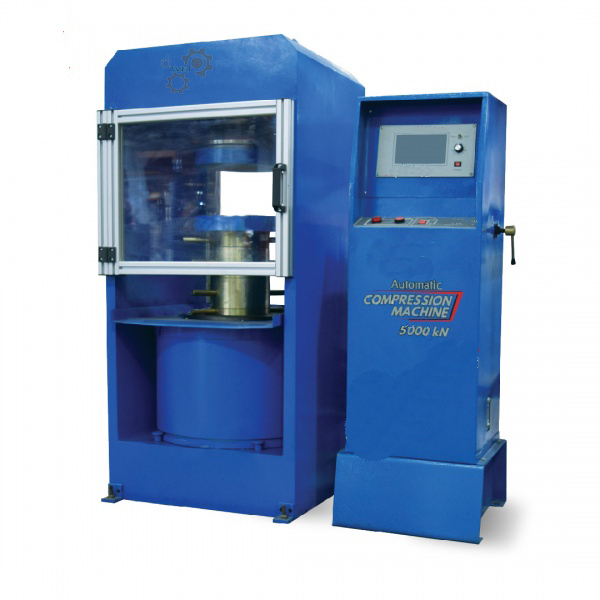

Automatic Compression Machine (Welded Frame) 5000 kN Manufacturer,Supplier and Exporter in India
5000kN.jpg)
Product Code : TVT-CTE-10442
The Automatic Compression Machine (Welded Frame) 5000kN is a heavy-capacity welded-frame compression tester built around a dual-channel, independently calibrated load-measuring system, sized to cover both high-strength concrete specimens and lower-load specimens on the same frame. An optional flexural attachment lets the 5000 kN frame also be used for flexural strength testing.
How It Works
The machine uses two independently calibrated measuring channels — a high range (5000 kN x 1.0 kN sensitivity) for full-capacity concrete cube and cylinder testing, and a second, finer range (999 kN x 0.1 kg sensitivity) for lower-load specimens — so the operator does not need a second, smaller-capacity machine to get accurate readings across a wide range of specimen strengths. Load is applied hydraulically through the piston ram, and the console automatically records peak load and computed strength for each channel. When the optional flexural attachment is fitted, the same frame and console can be reconfigured to run flexural (bending) tests instead of direct compression.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max. Vertical Clearance | 435 mm |
| Max. Horizontal Clearance | 580 mm |
| Capacity | 5000 kN x 1.0 kN & 999 kN x 0.1 kg Sensitivity (dual channel) |
| Compression Platen Diameter | 300 mm |
| Piston Ram Diameter | 440 mm |
| Piston Ram Travel | 50 mm |
| Accuracy Class | Class 1 |
| Frame Dimension | 750 x 660 x 1500 mm |
| Console Dimension | 620 x 500 x 1300 mm |
| Approx. Product Weight | 2800 kg |
| Approx. Packing Weight | 2950 kg |
| Power | 220V, 2.5 Amp, 50/60 Hz, 1 Ph |
Applications
The high-range channel is used for compressive strength testing of high-strength concrete cubes and cylinders per ASTM C39, IS 516, and EN 12390-4. The dual-channel design is also suited to mortar cube compression testing (relevant standards: ASTM C109, IS 4031 Part 6, EN 196-1) on the lower-sensitivity channel; ask for the usable load range for mortar cubes on your quotation. With the optional flexural attachment, the frame supports flexural beam testing per ASTM C78 / C293, IS 516, and EN 12390-5.
Related Products & Category
Listed under Concrete Testing Equipments. Related products: Welded Frame Compression Machine 3000kN and Touch Screen Welded Frame Compression Machine 2000kN.
Frequently Asked Questions
Can this machine test both concrete and mortar specimens?
Yes. The two independently calibrated channels allow both concrete and mortar specimens to be tested on one frame. Ask for the usable load range of the mortar channel on your quotation.
What is the maximum capacity of this machine?
5000 kN on the primary channel, with a second, finer-resolution 999 kN x 0.1 kg channel for lower-load specimens.
Can this machine run flexural tests?
Yes, with the optional flexural attachment, which reconfigures the frame from direct compression to a flexural (bending) load path per ASTM C293/EN 12390-5.
Request a Quote
To get a quotation for the Automatic Compression Machine (Welded Frame) 5000 kN, tell us the test standard you work to, the quantity, your power supply (voltage and phase) and the delivery location. Request a quote from Tvet Equipments.
