Specimen Grinding Machine (Fully Enclosed Version) Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : TVT-CTE-10516

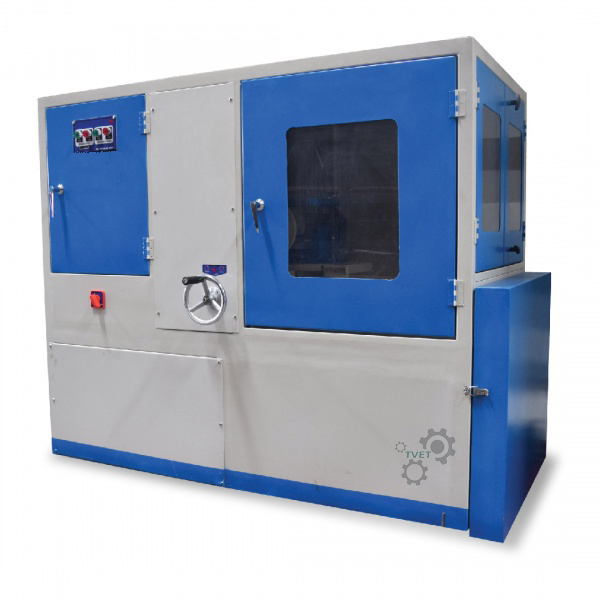

The Specimen Grinding Machine (Fully Enclosed Version) is a fully enclosed specimen flat-polishing machine, built from rugged materials with a built-in water cooling system and control panel, protecting the operator from abrasive dust and noise while grinding concrete specimens, natural stones, and ceramic materials.
How It Works
The cube or cylinder specimen is mounted horizontally on a sliding table, which moves the specimen toward a horizontal grinding wheel for a fine polishing process; the fully enclosed housing contains dust and noise, while the built-in water cooling system keeps the grinding zone cool during operation. Grinding can run automatically, at an adjustable feed rate, or manually.
Technical Specifications
| Parameter | Specification |
|---|---|
| Grinding Wheel Diameter | 200 mm |
| Max. Specimen Size | 150mm Cube x 2 nos; Ø160 x 320mm Cylinder x 3 nos |
| Sliding Table Movement | Min. 800mm forward & reverse mode |
| Grinding Wheel Speed | 2800 RPM |
| Mode of Work | Automatic or manual grinding |
| Automatic Grinding Feed | 0.04 – 0.17mm (adjustable) |
| Cooling Method | Tap water (built-in system) |
| Dimension (L x W x H) | 1450 x 1400 x 1200 mm |
| Weight | 630 kg |
| Power | 415V, 3Ph, 1.1kW & 0.75kW |
Applications
Used to flat-polish concrete, natural stone and ceramic specimens ahead of compression testing, offering higher specimen throughput (multiple cubes/cylinders per load) than a standard open-frame grinder, consistent with the specimen end-preparation requirements of ASTM C39/ASTM C42 and IS 516 (Part 1/Sec 1 and Part 4).
Related Products & Category
Browse the full Concrete Testing Equipments range, or see Specimen Grinding Machine and Surface Grinding Machine.
Frequently Asked Questions
What does "fully enclosed" mean for this machine?
The grinding wheel and specimen are housed inside a rugged enclosure that contains abrasive dust and noise, giving better operator protection than an open-frame grinding machine.
How many specimens can be ground per load?
Up to 2 cube specimens (150mm) or 3 cylinder specimens (Ø160 x 320mm) at a time, more than the twin-head open-frame Specimen Grinding Machine handles per cycle.
What materials can this machine polish besides concrete?
Natural stones and ceramic materials, in addition to concrete cube and cylinder specimens.
