5000kN Digimatic Load Cell Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10512

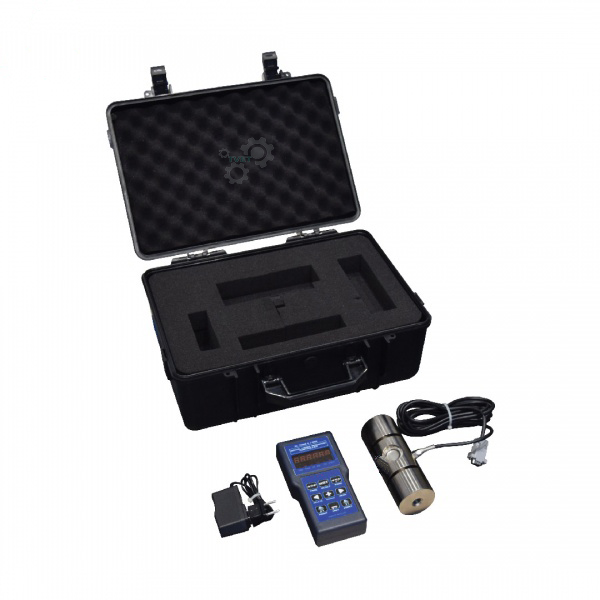

The 5000kN Digimatic Load Cell is the highest-capacity model in Tvet Equipments' load cell range, used for load and force verification/calibration of high-capacity compression testing machines.
How It Works
As load is applied through the compression testing machine under calibration, strain in the sensitive steel-block element is transmitted to an amplifier, which converts it into a digital load reading. Comparing this reading against the testing machine's own indicated load verifies the machine's force accuracy across its working range.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 5000 x 0.01 kN |
| Load Cell Dimension | Ø180 x 375(H) mm |
| Working Temperature | 0 – 45°C, Moisture up to 80% RH |
| Accuracy | Class ±1% |
| Approx. Weight | 28 kg |
| Power | NiCd battery, AC adaptor as charging source |
Applications
Used for load and force verification/calibration of high-capacity compression testing machines (such as 5000kN-class machines) per ASTM E4 (Standard Practices for Force Verification of Testing Machines) and ISO 376 (calibration of force-proving instruments).
Related Products & Category
The 5000kN Digimatic Load Cell is part of our Concrete Testing Equipments range. Other products in this range include Digimatic Load Cell 300kN and Automatic Compression Machine (Welded Frame) 5000kN.
Frequently Asked Questions
What is this load cell used for?
It verifies and calibrates the force accuracy of high-capacity compression testing machines, by comparing its own independent digital reading against the machine’s indicated load.
What is the capacity of this load cell?
5000kN, read in 0.01kN increments — the largest capacity in Tvet Equipments’ load cell range.
Is this suited to the 5000kN compression machines in your range?
Yes, its 5000kN capacity matches the range’s highest-capacity compression machines, such as the Automatic Compression Machine (Welded Frame) 5000kN.
Request a Quote
To get a quotation for the 5000kN Digimatic Load Cell, tell us the test standard you work to, the quantity, your power supply (voltage and phase) and the delivery location. Request a quote from Tvet Equipments.
