Flow Cone Manufacturer,Supplier and Exporter in India
Product Code : TVT-CMTE-10386

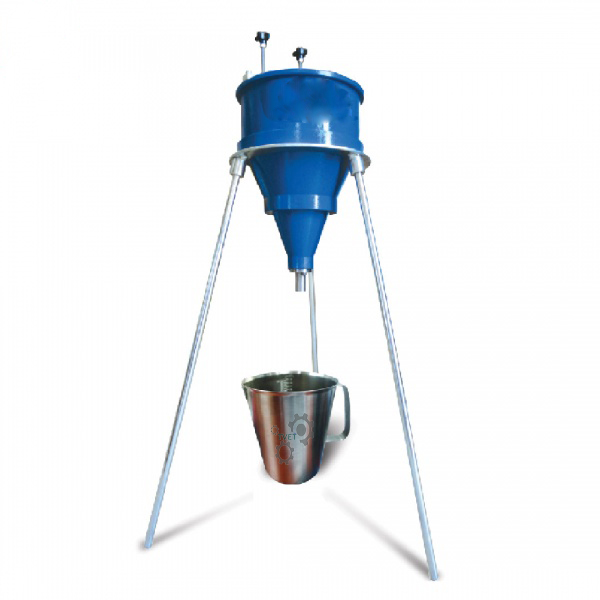

The Flow Cone from Tvet Equipments is a larger-capacity, aluminium flow-testing instrument used to measure the flow of cement-based grouts by the efflux-time method, in both field and laboratory settings, where higher sample volumes or on-site batching checks are required.
How It Works
A larger measured volume of grout is poured into the cone and discharged through a calibrated base orifice into a graduated receiving vessel, using the same efflux-time principle applied across flow cone testing. Its larger dimensions and aluminium construction make it robust for repeated field use during grouting work and site batching trials, while still delivering the same directly comparable efflux-time consistency index as the compact laboratory version.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimension (L x W x H) | 460 x 410 x 780 mm |
| Material | Aluminium |
| Approx. Weight | 5.1 kg |
Applications
This larger-capacity Flow Cone is used for efflux-time flow testing of cement-based grouts to ASTM C939, supporting field quality control on ground improvement sites and larger-batch grouting operations where a bigger sample volume or more robust field-grade construction is needed.
Related Products & Category
Part of Tvet Equipments' Cement & Mortar Testing Equipments range, complementing the compact Flow Cone Apparatus. For drilling mud, see the Marsh Funnel Viscometer and the Sand Content Kit.
Frequently Asked Questions
Q1. What is the difference between this Flow Cone and a standard Marsh funnel?
A Marsh funnel is the instrument API RP 13B-1 specifies for the funnel viscosity of drilling mud, with its own fixed dimensions and volumes. This Flow Cone is a grout flow cone for the ASTM C939 efflux-time test, built larger for field use. For drilling mud, use the Marsh Funnel Viscometer.
Q2. Why is this version larger and made of aluminium rather than stainless steel?
The larger aluminium construction is suited to bigger sample volumes and repeated field handling on grouting sites, where portability and durability under site conditions matter more than the compact bench-top form factor of the smaller Flow Cone Apparatus.
Q3. Which grouts is the flow cone test used for?
ASTM C939 covers grout for preplaced-aggregate concrete, and the same efflux-time check is widely used for cement grouts in post-tensioning ducts, ground anchors and pressure grouting.
Request a Quote
To get a quotation for the Flow Cone, tell us the test standard you work to, the quantity and the delivery location. Request a quote from Tvet Equipments.
