Tapered Cylinder Mould Manufacturer,Supplier and Exporter in India
Product Code : TVT-CMTE-10422

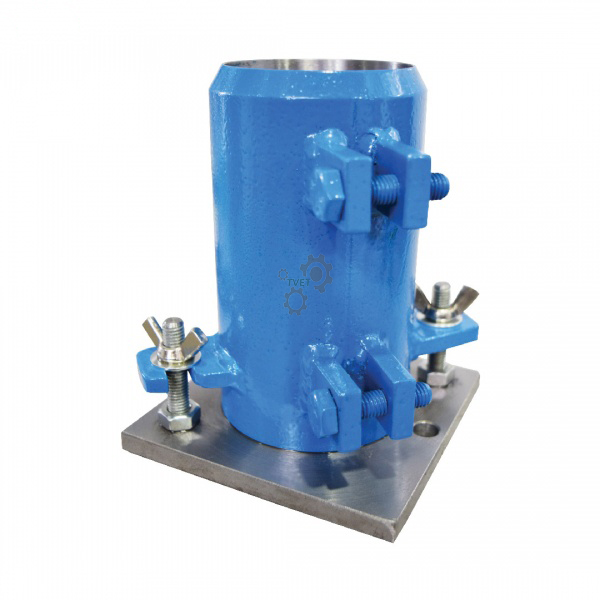

The Tapered Cylinder Mould from Tvet Equipments determines the volume change (bleeding and expansion) of grout, using a split, quick-clamping steel cylinder with a machine-tapered top rim and detachable base plate for easy specimen removal.
How It Works
Fresh grout is poured into the mould's steel cylinder, split longitudinally with two quick-acting clamps welded in place for fast opening after casting. The tapered top rim helps the specimen release cleanly once the clamps are opened, while the detachable base plate simplifies removal from below. The specimen's height or volume is monitored over time to determine the grout's volume change (bleeding or expansion) behaviour.
Technical Specifications
| Parameter | Specification |
|---|---|
| Mould Internal Dimension | 76 mm dia. x 152 mm height, mild steel cylinder |
| Overall Dimension | 130 x 130 x 162 mm |
| Approx. Weight | 3.8 kg |
Applications
The Tapered Cylinder Mould is used to determine volume change (height change) of grout, following the general principle referenced in ASTM C827 (Change in Height at Early Ages of Cylindrical Specimens of Cementitious Mixtures), an important quality check for grouts used in post-tensioning ducts, ground anchors and preplaced-aggregate concrete.
Related Products & Category
Part of Tvet Equipments' Cement & Mortar Testing Equipments range, complementing the Flow Cone Apparatus used for grout flow testing. See also Mortar Three Gang Mould.
Frequently Asked Questions
Q1. What does this mould test?
It is used to determine the volume change (bleeding or expansion behaviour) of grout specimens over time.
Q2. What standard is this test based on?
It follows the general principle referenced in ASTM C827 for measuring height/volume change of cementitious mixture specimens at early ages.
Request a Quote
To get a quotation for the Tapered Cylinder Mould, tell us the test standard you work to, the quantity and the delivery location. Request a quote from Tvet Equipments.
