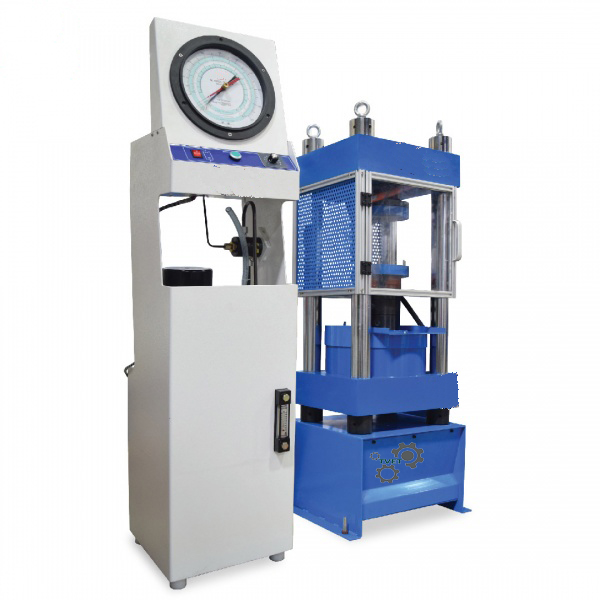

Analogue Compression Machine Light Duty Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10444
The Analogue Compression Machine Light Duty is an economical 2000 kN concrete compression testing machine built around an imported DC motor drive and a fully enclosed safety housing, aimed at laboratories that need reliable routine compression testing without the cost of a full digital touch-screen system.
How It Works
The imported DC motor drives the hydraulic pump with less vibration and noise than a conventional motor, and gives lower oil temperature and power consumption in continuous use. Load is applied through the piston ram and read on the machine's analogue dial console (branded "Smartz" by the manufacturer), with the fully enclosed housing shielding the operator from the loading area during the test — a straightforward, low-maintenance setup suited to routine day-to-day quality-control testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max. Vertical Clearance | 345 mm |
| Max. Horizontal Clearance | 270 mm |
| Capacity | 2000 kN x 5 kN/Div |
| Compression Platen Diameter | 216 mm |
| Piston Ram Diameter | 250 mm |
| Piston Ram Travel | 50 mm |
| Main Frame Dimension | 410 (L) x 440 (W) x 1280 (H) mm |
| Smartz Console Dimension | 360 (L) x 400 (W) x 1430 (H) mm |
| Approx. Weight | 600 kg |
| Power | 220V, 2.5 Amp, 50/60 Hz, 750W, 1 Ph |
Applications
Used for routine compressive strength testing of concrete cubes and cylinders under ASTM C39, IS 516, and EN 12390-4, where a basic, lower-cost analogue-reading machine is sufficient for day-to-day quality-control acceptance testing.
Related Products & Category
Browse the full Concrete Testing Equipments range, or see Touch Screen Welded Frame Compression Machine 2000kN and Welded Frame Compression Machine 3000kN.
Frequently Asked Questions
What is the capacity of this machine?
2000 kN, with readings in increments of 5 kN on the analogue dial.
Is this suitable for routine site or QC lab testing?
Yes — it is positioned as a light-duty, economical option for routine concrete cube and cylinder compression testing where a digital touch-screen system is not required.
What power supply does the machine need?
A single-phase 220V supply at 2.5 Amp, 50/60 Hz, drawing 750W through the DC motor drive.
Request a Quote
For a price on the Analogue Compression Machine Light Duty, send us the quantity, the standard or test method it is for, your mains supply and where it should be delivered. Send an enquiry to Tvet Equipments.
