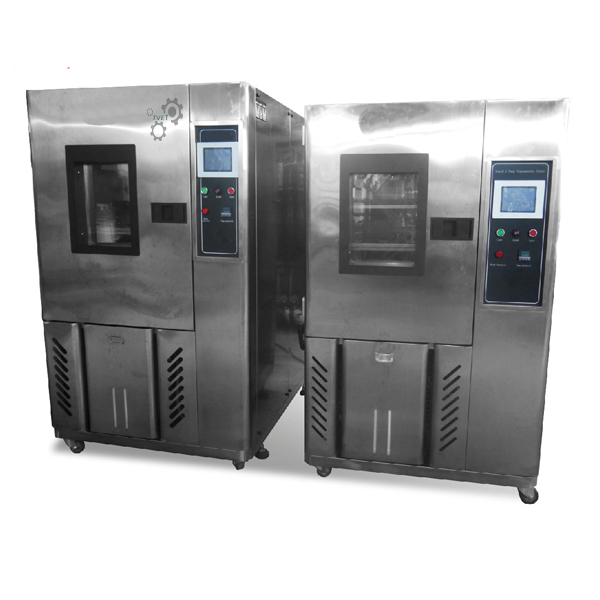

Humidity Chamber Manufacturer,Supplier and Exporter in India
Product Code : TVT-CMTE-10397
Technical Specifications:
|
Capacity |
408L |
225L |
|
Power Supply Source |
AC
415V, 50/60 Hz, 3 phase, 15 A |
|
|
Temperature Range |
-
40°C ~ +150°C (0.01°C resolution) |
|
|
Temperature Accuracy |
±1°C |
|
|
Humidity Range |
20%
~ 98% RH (0.1 % resolution) |
|
|
Control Accuracy |
±0.5°C
/ ±2.5 % RH |
|
|
Working Environment |
10°C
~ 38°C , Max 75 % RH |
|
|
Cooling Speed |
1°C
/ Min in average (without loading) |
|
|
Heating Speed |
1°C
/ Min in average (without loading) |
|
|
Internal Chamber Material |
SUS#304
Stainless Steel, Mirror Finished |
|
|
External Chamber Material |
Fully
Stainless steel |
|
|
Cooling Method |
Air
Cooling |
|
|
Controller |
Korea,
TEMI 800 Controller LCD Touch Screen, programmable control temperature
& humidity. Can set different parameter for cyclic test |
|
|
Insulation Material |
50
mm high density rigid Polyurethane foam |
|
|
Heater |
Explosion-proof
type SUS#304 Stainless Steel fins radiator pipe heater |
|
|
Compressor |
France,
Tecumseh compressor |
|
|
Lighting |
Heat
Resistance |
|
|
Temperature Sensor |
PT-100
dry & wet bulb sensor |
|
|
Observation Window |
Tempered
Glass |
|
|
Testing Hole |
Diameter
50mm, for cable routing |
|
|
Safety Protection Device |
Protection
for leakage,over-temperatured,compressor overvoltage& overload, heater
short circuit and water shortage |
|
|
Internal Dimensions (WxDxH) |
600
x 800 x 850 mm |
500
x 600 x 750 mm |
|
External Dimensions (WxDxH) |
1045
x 1375 x 1750 mm |
1000
x 1175 x 1645 mm |
|
Approx. Weight |
360
kg |
300
kg |
