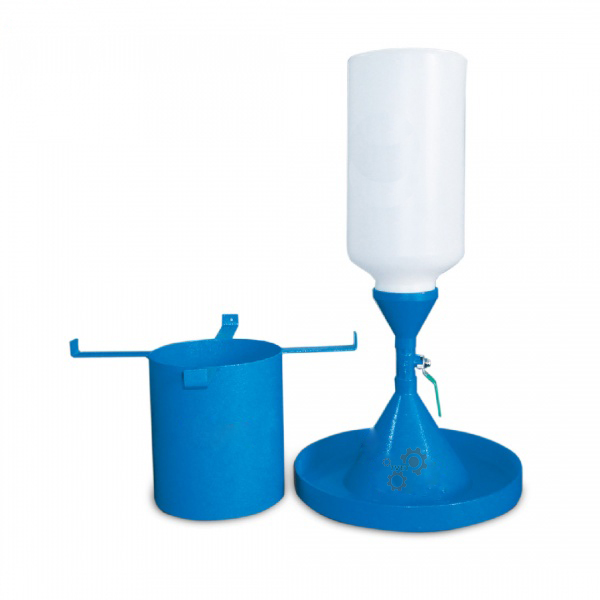

Sand Density Cone Apparatus Manufacturer,Supplier and Exporter in India
Product Code : TVT-STE-10566
The Sand Density Cone Apparatus is used to determine the in-situ dry density of fine-grained compacted soil by the sand replacement method, a standard field check on earthwork and pavement layer compaction.
How It Works
A small hole is excavated in the compacted soil layer and the excavated material is collected, dried and weighed. The sand pouring cylinder, fitted with this density cone base, is then used to fill the hole with a calibrated free-flowing sand of known bulk density; the volume of the hole is back-calculated from the mass of sand used, allowing the in-situ dry density of the soil to be determined.
Technical Specifications
| Parameter | Specification |
|---|---|
| Test Method | Sand replacement method (cone/base component) |
| Dimension | 300 mm dia. x 450 mm |
| Approx. Weight | 1.3 kg |
Applications
The sand replacement method is used to verify field compaction of soil, subgrades and granular fill, governed by IS 2720 (Part 28): Determination of Dry Density of Soils In-Place by the Sand Replacement Method and ASTM D1556/D1556M: Standard Test Method for Density and Unit Weight of Soil in Place by the Sand-Cone Method. It is a standard field quality-control check used alongside laboratory Proctor density results to confirm that compaction targets have been met.
Related Products & Category
The Sand Density Cone Apparatus is part of our Soil Testing Equipment range. Other products in this range include Sand Pouring Cylinder Set and Core Cutter Set.
Frequently Asked Questions
What does the sand density cone apparatus measure?
It forms part of the sand replacement method used to determine the in-situ dry density of compacted soil in the field.
Which standards govern the sand replacement method?
IS 2720 (Part 28) in India and ASTM D1556/D1556M internationally govern the sand-cone density test procedure.
Is this apparatus used with a specific cylinder size?
Yes, it is used together with a matching Sand Pouring Cylinder Set, available in multiple diameters to suit different hole sizes.
Request a Quote
For a quotation on the Sand Density Cone Apparatus, send us the size or capacity you need, the quantity and the delivery location. Request a quote from Tvet Equipments.
