Digimatic Load Cell Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10509

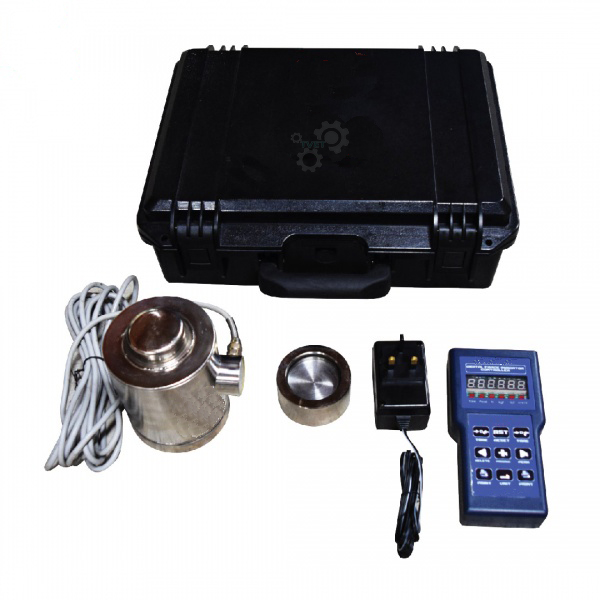

The Digimatic Load Cell is a high-accuracy, digital-readout load and force verification device consisting of a sensitive steel-block strain element housed in a protective sheathing, used for calibrating compression testing machines.
How It Works
As load is applied through the compression testing machine under calibration, strain in the sensitive steel-block element is transmitted to an amplifier, which converts it into a digital load reading. Comparing this reading against the testing machine's own indicated load verifies the machine's force accuracy across its working range.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 2000 x 0.01 kN |
| Load Cell Dimension | Ø130 x 170(H) mm |
| Working Temperature | 0 – 45°C, Moisture up to 80% RH |
| Accuracy | Class ±1% |
| Approx. Weight | 19 kg |
| Power | NiCd battery, AC adaptor as charging source |
Applications
Used for load and force verification/calibration of compression testing machines per ASTM E4 (Standard Practices for Force Verification of Testing Machines) and ISO 376 (calibration of force-proving instruments), typically as part of periodic machine calibration and third-party verification.
Related Products & Category
The Digimatic Load Cell is part of our Concrete Testing Equipments range. Other products in this range include Digimatic Load Cell 300kN and Automatic Compression Machine (Welded Frame) 5000kN.
Frequently Asked Questions
What is this load cell used for?
It is used to verify and calibrate the force accuracy of compression testing machines, by comparing the load cell’s independent digital reading against the machine’s own indicated load.
What is the capacity of this load cell?
2000kN, read in 0.01kN increments.
How is the load cell powered?
A NiCd rechargeable battery, with an AC adaptor supplied as the charging source.
Request a Quote
For a price on the Digimatic Load Cell, send us the quantity, the standard or test method it is for, your mains supply and where it should be delivered. Send an enquiry to Tvet Equipments.
Last updated: September 2026
